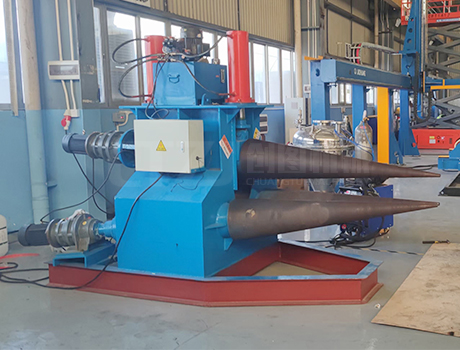

产品特点：对称锥形卷板机上棒在两辊子中心对称位置，由液压油缸作用于活塞作垂直升降运动，并由主减速器的末级齿轮带动两滚轮齿轮啮合而作旋转运动，为卷制板提供力矩。...
全国免费服务热线：180-6895-499960秒上线服务于 3060分钟工艺解答 24小的时候新技术工作方案
产品特点

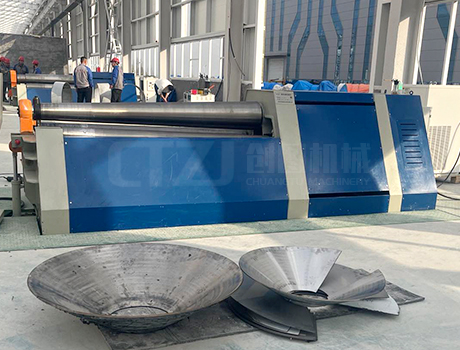

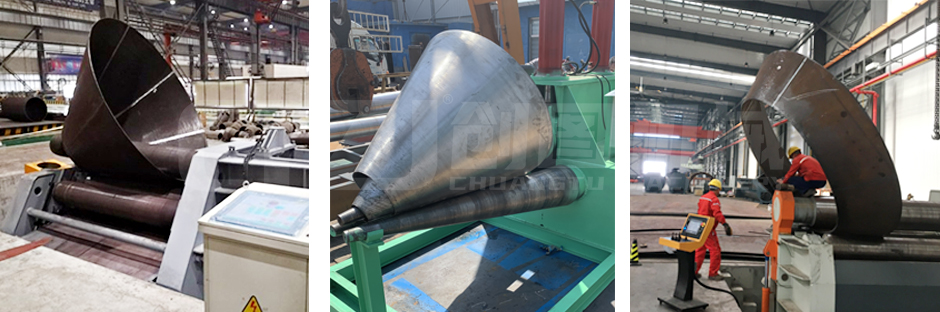

扇形筒卷板机上辊可采用了机制设备或气动调,可在帮着卷制扇形產品,建设不锈钢304扇形筒、钢板材料多少头卷制,小厚度扇形卷简,简单的、简单,快捷设置。可会根据可户款式定制大小產品款式。该选果机密切应在精确度条件高,如:飞机维修、核电建设等重金属结构类型件建设业及蓝翔塑业有限公司所生产的机制设备、深海页岩油品台、石油地埋管气水地埋管等制造业。现场案例
規格 规格型号 | 卷板层厚 (mm) | 卷板长宽 (mm) | 上辊外径 (mm) | 高压电机额定功率 (kw) | 外形尺寸 (mm) |
| CTW12-4X1500 | 1-4 | 1500 | 140 | 3 | 2800x800x1000 |
| CTW12-4X2000 | 1-4 | 2000 | 160 | 4 | 3400x900x1000 |
| CTW12-6X2000 | 1-6 | 2000 | 170 | 4 | 3600x1100x1100 |
| CTW12-6X2500 | 1-6 | 2500 | 190 | 5.5 | 4000x1200x1200 |
| CTW12-8X2500 | 2-8 | 2500 | 220 | 7.5 | 4700x1500x1500 |
| CTW12-12X2000 | 3-12 | 2000 | 240 | 7.5 | 4200x1500x1500 |
| CTW12-12X2500 | 3-12 | 2500 | 260 | 11 | 4800x1600x1600 |
| CTW12-16X2500 | 3-16 | 2500 | 280 | 11 | 5000x1700x1700 |
| CTW12-16X4000 | 4-16 | 4000 | 370 | 22 | 6600x1700x1700 |
| CTW12-20X2500 | 3-20 | 2500 | 340 | 15 | 5000x1900x1880 |
| CTW12-20X3200 | 4-20 | 3200 | 380 | 18.5 | 4600x2200x2200 |
| CTW12-25X2000 | 3-25 | 2000 | 340 | 15 | 4600x1900x1900 |
| CTW12-25X2500 | 4-25 | 2500 | 380 | 18.5 | 5100x2200x2200 |
| CTW12-25X3200 | 5-25 | 3200 | 420 | 22 | 6600x2550x2500 |
| CTW12-30X2500 | 5-30 | 2500 | 420 | 22 | 6000x2800x2900 |
| CTW12-30X3200 | 5-30 | 3200 | 450 | 30 | 6800x2900x2900 |
| CTW12-40X2500 | 6-40 | 2500 | 520 | 37 | 6500x3000x3000 |
| CTW12-40X3200 | 6-40 | 3200 | 550 | 2x22 | 7100x3000x3000 |
| CTW12-50X2500 | 8-50 | 2500 | 580 | 2x22 | 6500x3000x3000 |
| CTW12-50X3200 | 8-50 | 3200 | 620 | 2x30 | 7100x3000x3000 |
| CTW12-60X3200 | 10-60 | 3200 | 660 | 2x37 | 7200x3300x3500 |
| CTW12-80X3200 | 16-80 | 3200 | 800 | 2x45 | 7500x3500x3800 |
| CTW12-100X3200 | 20-100 | 3200 | 860 | 2x55 | 8100x3800x3800 |
| CTW12-120X3200 | 20-120 | 3200 | 920 | 2x63 | 8200x4000x4000 |
| CTW12-150X3200 | 25-140 | 3200 | 1080 | 2x75 | 8600x5000x5000 |
| CTW12-160X3200 | 30-160 | 3200 | 1160 | 2x75 | 8600x5200x5200 |
| CTW12-180X3200 | 30-180 | 3200 | 1220 | 2x90 | 8800x6000x5800 |
